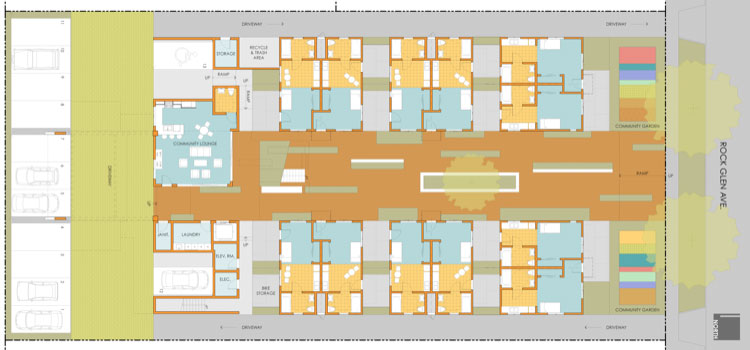

homeless housing plansFirst Level Floor Plan

homeless housing floor plans

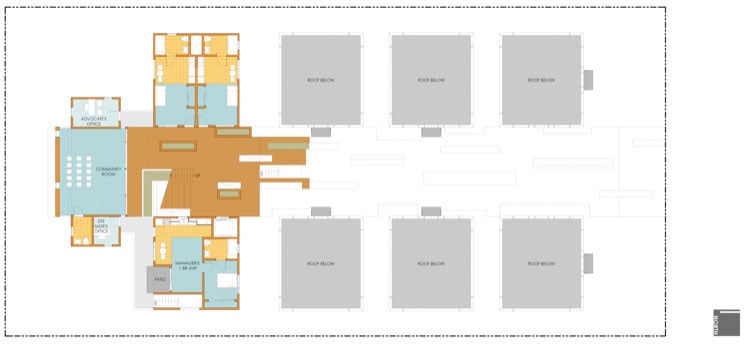

Second Level Floor Plan

First Level

The first level of the project contains the following interior spaces:
  • 12 -  SRO Units (bungalow conversions) - 350 sq. ft each
  • Community Members’ Lounge and Restroom - 689 sq. ft
  • Laundry Room - 95 sq. ft
  • Storage, Elevator Room, Electrical Room & Janitor’s Closet - 271 sq. ft

The first level of the project contains the following exterior spaces:

  • Community Deck
  • Community Gardens
  • Recycle & Trash Area
  • Parking for 12 Cars
  • Bike Storage



Second Level

The second level of the project contains the following interior spaces:
  • 2 -  SRO Units (new construction) - 350 sq. ft each
  • Site Manager’s One-Bedroom Unit - 530 sq. ft
  • Community Room & Restroom - 585 sq. ft.
  • Site Manger’s Office - 65 sq. ft.
  • Advocate’s Office -  120 sq. ft.
  • Elevator
The second level of the project contains the following exterior spaces:
  • Community Deck
  • Amphitheater
  • Two sets of stairs
